Standalone Deployment

https://cdn.sanity.io/images/8hdw8u8u/production/92346a0fca1114490aec6c1c92bf70c4ebf23217-94x94.svg

Install cvi42 as a Standalone deployment

Client and Server are installed on a single machine
cvi42 connects to the server locally
Workspaces can be saved as DICOM Secondary Capture (SC)

DICOM Secondary Captures / Workspaces / Reports can be saved to PACS
DICOM Send (unidirectional) and DICOM Q/R ( bi-directional)

https://cdn.sanity.io/images/8hdw8u8u/production/dcb41b529c2a6445e9c9fb163ee8264f541f61ff-1876x977.png?q=75&fit=clip&auto=format

† cvi42 CLIENT includes standard Report (included with all cvi42 licenses)
†† cvi42|Report requires additional license

https://cdn.sanity.io/images/8hdw8u8u/production/d2789017550bd2f5bf19392e7763475081183eb5-3200x1100.png?q=75&fit=clip&auto=format

Client/Server Deployment

https://cdn.sanity.io/images/8hdw8u8u/production/4dfdf3cfbdb1f4f27b2fa76899b9944000ec425c-94x94.svg

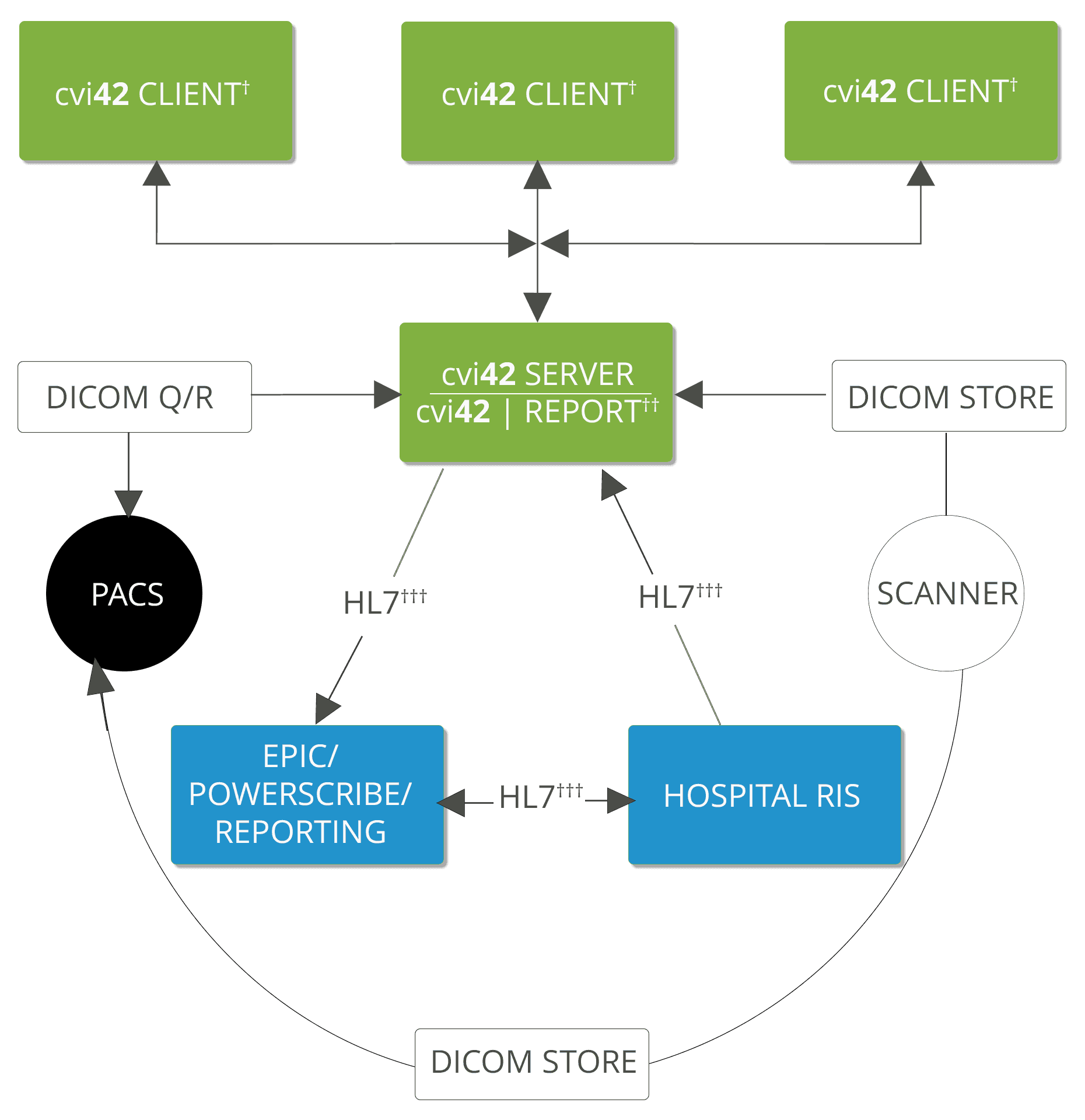

Install cvi42 as Client/Server deployment

cvi42 Client Computer(s) can connect to the cvi42 Server over a local TCP/IP Network
cvi42 Server will handle concurrent user licensing
PHI and imaging data is only stored on the cvi42 Server
Workspaces can be saved as DICOM (DICOM Workspaces / Secondary Captures and Reports can be saved to PACS)

Secure Client/Server connection with TLS encryption
Centralized user management with encrypted LDAP / AD authentication

https://cdn.sanity.io/images/8hdw8u8u/production/1d4b0ab7ce7ec633924ffcf5d41b7301cdfa2605-1860x1920.png?q=75&fit=clip&auto=format

† cvi42 CLIENT includes standard Report (included with all cvi42 licenses)
†† cvi42|Report requires additional license
††† HL7 integration requires cvi42|Report and purchase of HL7 integration services
